BQ36-142 Gear ‌Speed Reducer‌ For ‌‌Wire Tractor

Product Description

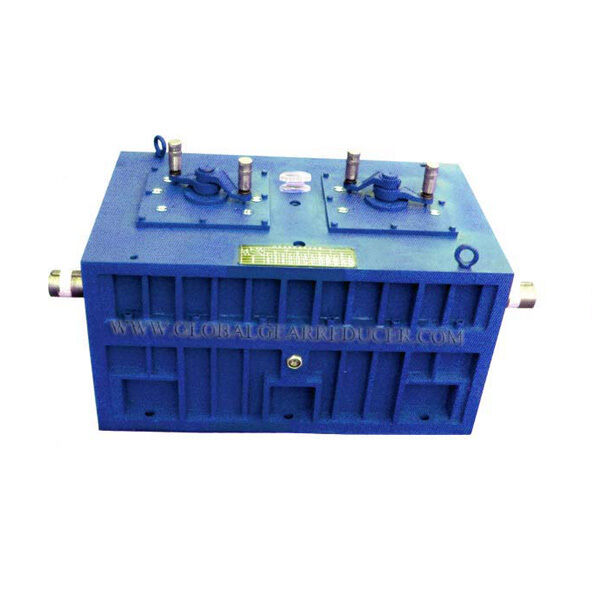

The BQ36-142 gearbox is a cylindrical gear transmission device with 36 reduction ratios. The input shaft and the output shaft are coaxial and the installation method is foot mounting.

Technical Feature

1.Meshing center distance : 142mm,reduction ratio 1 to 7.6, 36 shifting speeds, common ratio 1.06

2.Allowable output torque:600-1200 Nm

3.Structure type: gear transmission, input/output coaxial, gear rack shift fork

4.Installation method: Footing mounting

5.Assembly Style:Above picture shows for I style, and the II type could be reached by interchanging input and output shaft.

6.This gearbox output shaft could match DBY200 gearbox

Application

BQ36-142 gearbox is mainly used in stranded wire tractor.
