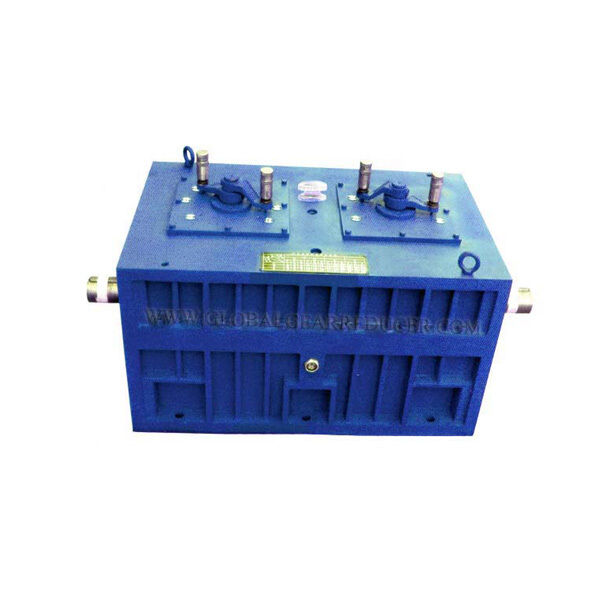

BQ36-125 Cylindrical Gear Transmission Device With 36 Reduction Ratios

Product Description

The BQ36-125 gearbox is a cylindrical gear transmission device with 36 reduction ratios. The input shaft and the output shaft are coaxial and the installation method is foot mounting.

Technical Feature

1.Meshing center distance : 124mm,reduction ratio 1 to 7.6, 36 shifting speeds, common ratio 1.06

2.Allowable output torque:400-800 Nm

3.Structure type: gear transmission, input/output coaxial, gear rack shift fork

4. Installation method: Foot mounting

5.Assembly Style:Above picture shows for I style, and the II type could be reached by interchanging input and output shaft.

6.This gearbox output shaft could match model DBY180 or DBY200 gearbox

Application

BQ36-125 gearbox is mainly used in stranded wire tractor.

Core Competencies

1.Expert management team ensuring operational excellence.

2.Skilled engineering team driving innovative solutions.

3.State-of-the-art manufacturing facilities for precision production.

4.Precision testing instruments guaranteeing quality assurance.

5. Custom gearbox solutions tailored to your specific needs.

6.Reliable after-sales support for seamless operations.
