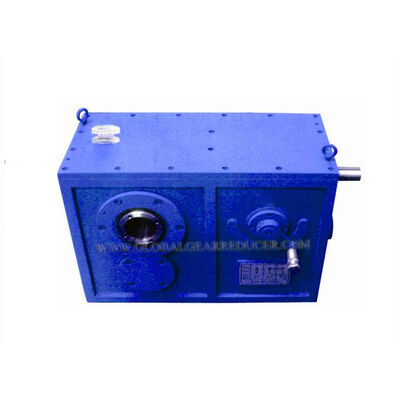

DFYK210H Gearbox Reducer For ‌Cable Reel In/Out Machine

Product Description

DFYK210H gearbox is a cylindrical bevel gear three-speed transmission device, its input shaft is perpendicular to the output shaft, the intermediate stage transmission is a spiral bevel gear, and the final stage transmission is a cylindrical helical gear. It is installed with a torque arm and the output is a hollow shaft. There are two types of assembly forms: left-hand and right-hand.The transmission ratio can be changed by changing the first stage gear parameters.

Technical Feature

1. Three-speed gearshift, rated output torque: 4000 Nm

2.Reduction ratio: 26.62,55.41,112.99

3. Structure types: Cylindrical bevel gears transmission, gear rack shift fork

4.Installation:Torque arm

Application

The DFYK210H gearbox is mainly used for wire take-up or pay-off machine.

Core Competencies

1.Expert management team ensuring operational excellence.

2.Skilled engineering team driving innovative solutions.

3.State-of-the-art manufacturing facilities for precision production.

4.Precision testing instruments guaranteeing quality assurance.

5. Custom gearbox solutions tailored to your specific needs.

6.Reliable after-sales support for seamless operations.
