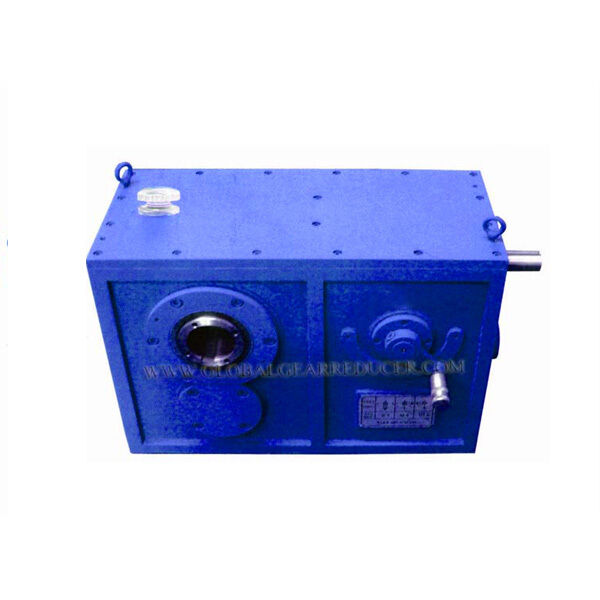

DFYK210 Cylindrical Bevel Gear Three-Speed Transmission Device

Product Description

The DFYK210 gearbox is a cylindrical bevel gear three-speed transmission device, its input shaft is perpendicular to the output shaft, the intermediate stage transmission is a spiral bevel gear, and the final stage transmission is a cylindrical helical gear. It is installed with a torque arm and the output is a hollow shaft. There are two types of assembly forms: left-hand and right-hand.The transmission ratio can be changed by changing the first stage gear parameters.

Technical Feature

1.Three-speed gearshift, rated output torque: 4000 Nm

2.Reduction ratio: 45.98,95.76,195.15

3.Structure type: Cylindrical bevel gears transmission, gear rack shift fork

4.Installation method:Torque arm

Application

The DFYK210 gearbox is mainly used for wire take-up or pay-off machine.
