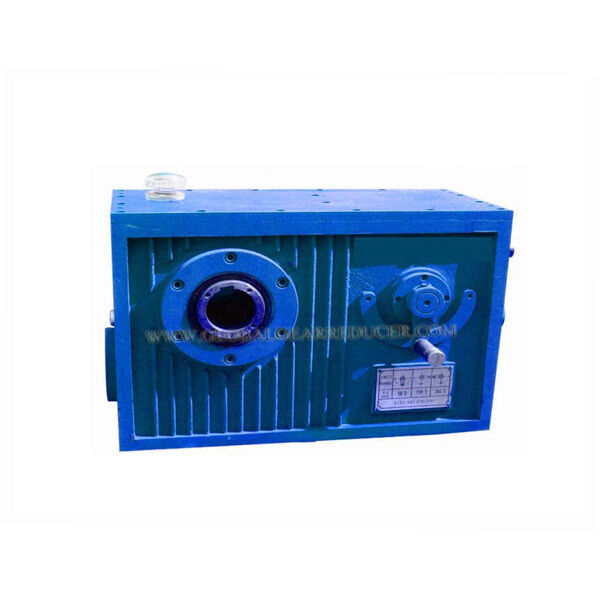

WBS200 Three-Speed Gearbox Reducer for Shaftless Wire Take-up Machine

Product Description

WBS200 gearbox is a three-speed transmission device with worm gear transmission, its input shaft and output shaft are vertical, and the final stage transmission is a worm gear. It is installed with a torque arm and the output is a hollow shaft. A clutch can be provided between the output shaft and the worm. There are two types of assembly forms: left-hand and right-hand. The transmission ratio can be changed by changing the first stage gear parameters.

Technical Feature

1.Three shifting speed,transmission ratio:56.22,115.39,236.85

2.Nominal output torque:3600Nm

3.Structure type: gear worm driving, gear rack shift fork

4. Installation method:Torque arm

Application

WBS200 gearbox is mainly used for shaftless wire take-up machine

Core Competencies

1.Expert management team ensuring operational excellence.

2.Skilled engineering team driving innovative solutions.

3.State-of-the-art manufacturing facilities for precision production.

4.Precision testing instruments guaranteeing quality assurance.

5. Custom gearbox solutions tailored to your specific needs.

6.Reliable after-sales support for seamless operations.
