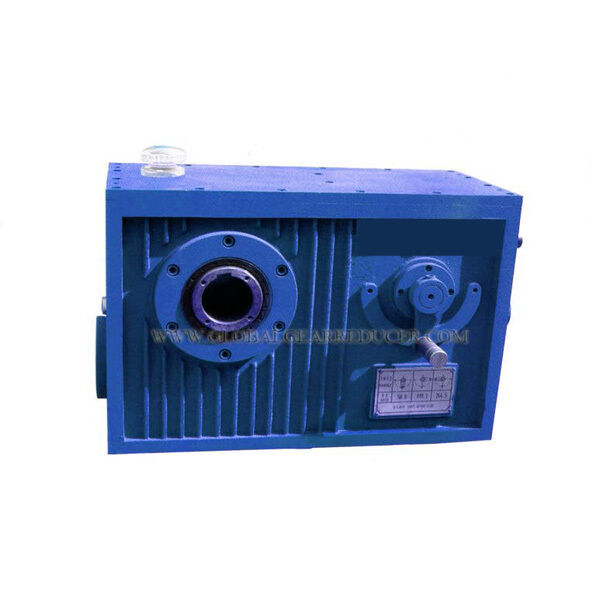

WBS160‌ Worm Gear Gearbox Transmission for Wire Take-up Machine

Product Description

WBS160 gearbox is a three-speed transmission device with worm gear transmission, its input shaft and output shaft are vertical, and the final stage transmission is a worm gear. It is installed with a torque arm and the output is a hollow shaft. A clutch can be provided between the output shaft and the worm. There are two types of assembly forms: left-hand and right-hand. The transmission ratio can be changed by changing the first stage gear parameters.

Technical Feature

1.Three shifting speed,transmission ratio:58.03 , 119.11 , 244.49

2.Rated output torque:1800Nm

3. Structure type: gear worm driving, shift by rack and fork

4.Installation method:Torque arm

Application

WBS160 gearbox is mainly used for shaftless wire take-up machine.

Core Competencies

1.Expert management team ensuring operational excellence.

2.Skilled engineering team driving innovative solutions.

3.State-of-the-art manufacturing facilities for precision production.

4.Precision testing instruments guaranteeing quality assurance.

5. Custom gearbox solutions tailored to your specific needs.

6.Reliable after-sales support for seamless operations.
