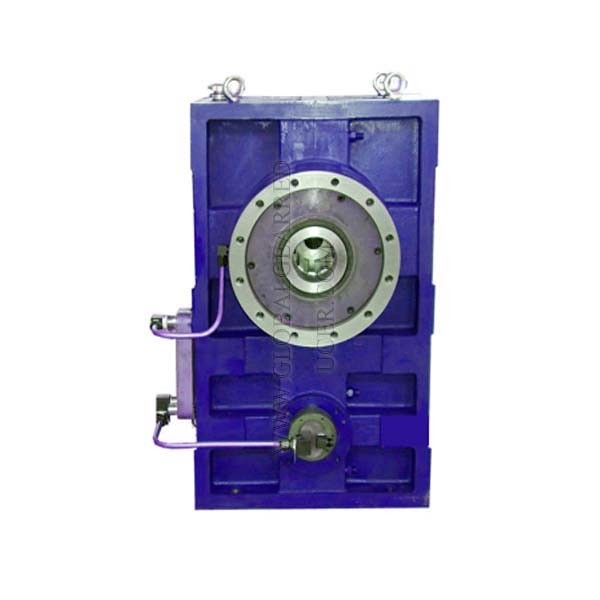

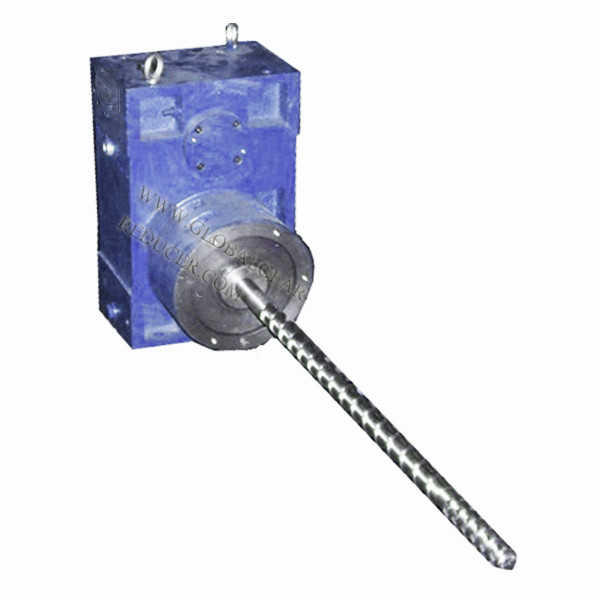

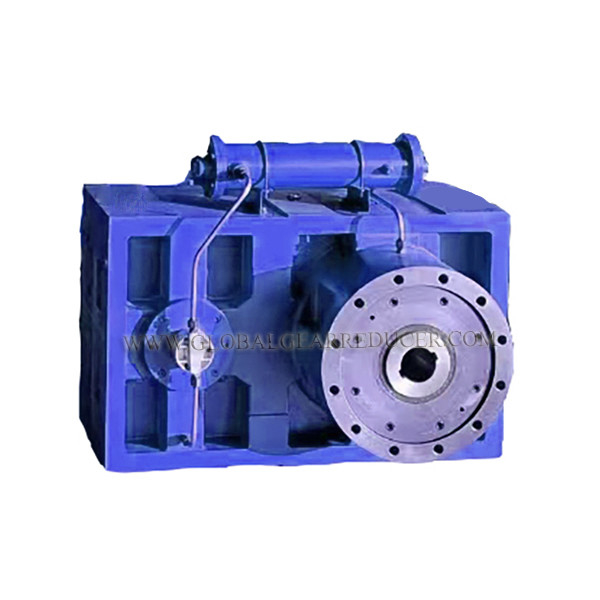

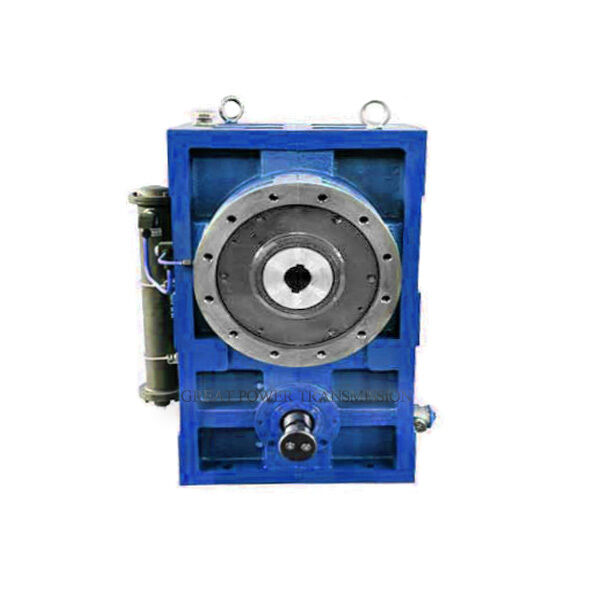

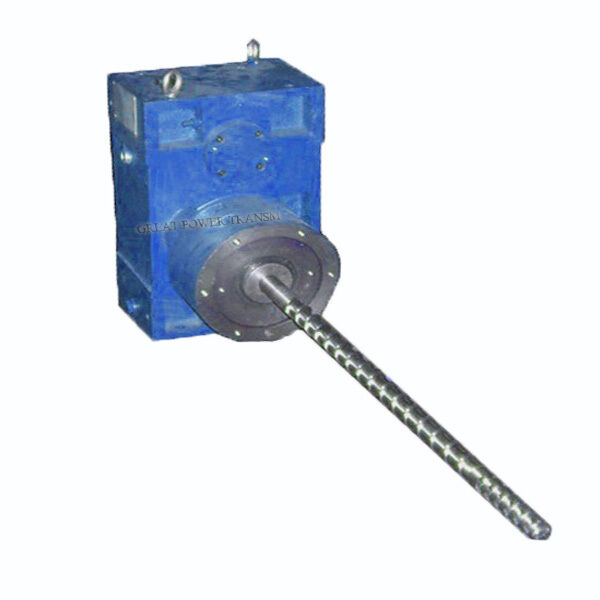

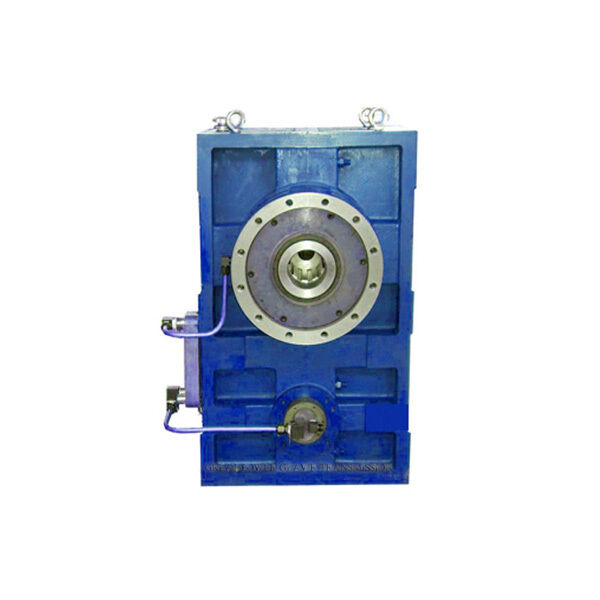

Vertical ZLYJ133/146/173/180 Gear Speed Reducer With Single Screw

Vertical ZLYJ133/146/173/180 Gear Speed Reducer With Single Screw

  • Gearing Arrangement
    Helical
  • Gear Material
    20CrMnTi
  • Input Power
    5.5-550KW
  • Input Speed
    800/1000/1200/1500
  • Ratio
    8/10/12.5/14/16/18/20
  • Lubrication
    Oil Pump
  • Cooling
    Water Pipe,Oil Cooler
  • Mounting Position
    Horizontal And Vertical
  • Noise Level
    Low
  • Place of Origin
    Jiangsu,China
  • Certification
    ISO9001
  • Model Number
    ZLYJ
  • Minimum Order Quantity
    1PCS
  • Packaging Details
    Wooden Case
  • Delivery Time
    20-30 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    800PCS per Month

Vertical ZLYJ133/146/173/180 Gear Speed Reducer With Single Screw

Product Description

ZLYJ series gearbox for single screw extruder is a kind of special gear unit researched and developed by importing the most advanced technology of the hard tooth surface in the world. The gears are made of top-grade low-carbon alloy steel with Grade 6 precision of teeth after carbon penetrating, quenching and teeth grinding. The hardness of the teeth surface is 54-62 HRC.

Product Feature

1.The whole machine can be used both vertically and horizontally.

2.  The gear pair has stable running, low noise and high driving efficiency.

3.The assembling connector has the precision of radial run-out and end face run-out at the international level.

4.The output shaft has a unique bearing structure for prolonging the service life.

5.All standard parts such as bearing, oil seal, lubricant oil pump, etc. are all top quality products .

Assembly Style

Vertical ZLYJ133/146/173/180 Gear Speed Reducer With Single Screw 0

  Technical Parameter

Vertical ZLYJ133/146/173/180 Gear Speed Reducer With Single Screw 1

Application

ZLYJ series gearbox is widely used in top and middle-grade plastic, rubber, and chemical fiber extruders.

Core Competencies

1. Our company has a professional managing team.

2. Our company has a professional engineering team.

3. Our company has advanced manufacturing equipment.

4. Our company has precision testing equipment.

5. We can customize the gearbox according to the customer's requirements.

6. Our products have reliable after-sales service.

Vertical ZLYJ133/146/173/180 Gear Speed Reducer With Single Screw 2
