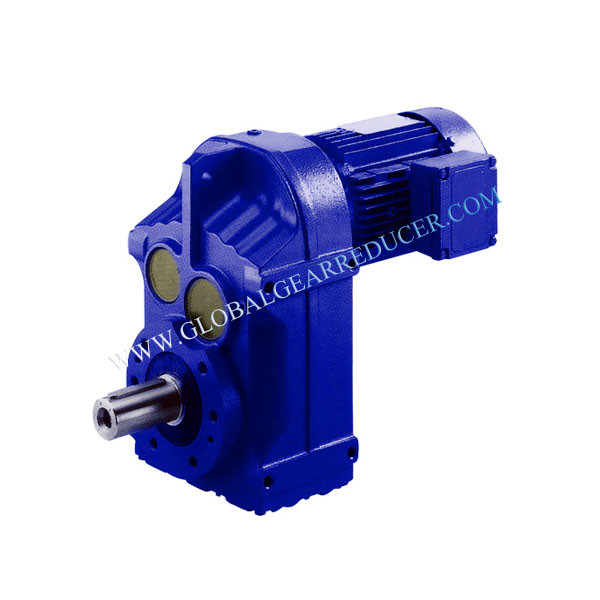

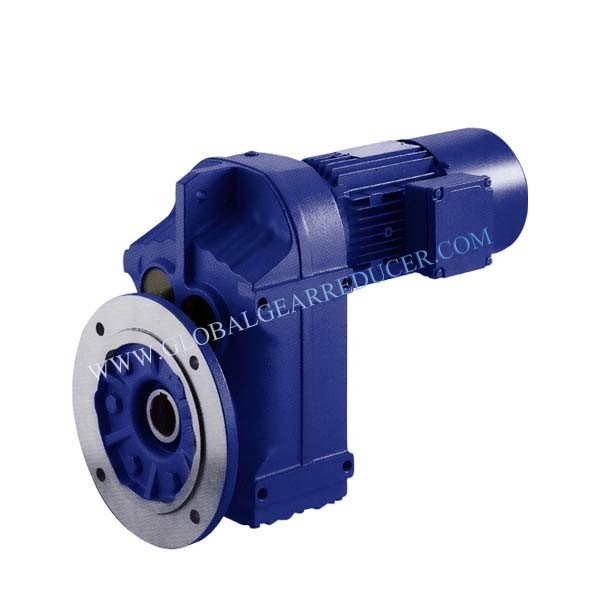

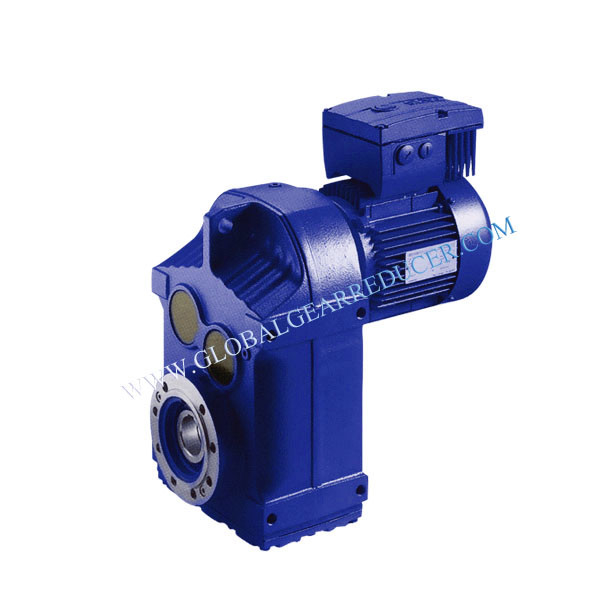

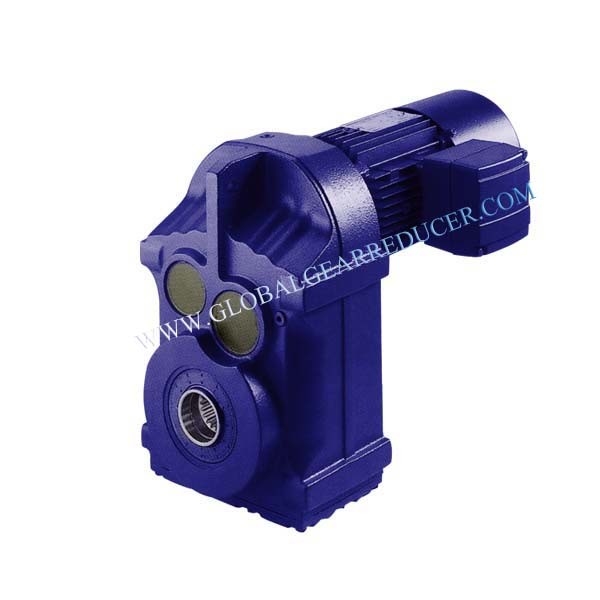

F37 F47 F57 Parallel Shaft Reducer Gearbox with AC Electric Motor

F37 F47 F57 Parallel Shaft Reducer Gearbox with AC Electric Motor

  • Output Speed
    0.06-379RPM
  • Input Speed
    750-1500 RPM
  • Gearing Arrangement
    Helical
  • Output Torque
    Up To 22264N.m
  • Rated Power
    0.12-200Kw
  • Color
    Customizable
  • Ratio
    3.77-22289
  • Warranty
    1 Year
  • Mounting Position
    Foot Mounted. Flange Mounted Shaft Mounted
  • Housing Material
    Cast Iron
  • Gear Material
    Alloy Steel
  • Place of Origin
    Jiangsu,China
  • Certification
    ISO9000
  • Model Number
    F Series
  • Minimum Order Quantity
    1PCS
  • Packaging Details
    Wooden Case
  • Delivery Time
    15 to 25 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 sets per month

F37 F47 F57 Parallel Shaft Reducer Gearbox with AC Electric Motor

Product Description
F series geared motors are helical gear transmission components. The shafts of this product are parallel to each other and consist of two-stage or three-stage helical gears. All gears are carburized, quenched, and finely ground. The gear pair has stable running, low noise, and high transmission efficiency.
Product feature
1. Highly modular design: It can be easily equipped with various types of motors or other power inputs. The same model can be equipped with motors of multiple powers. It is easy to realize the combined connection between various models.
2. Transmission ratio: fine division and wide range. Combined models can form a large transmission ratio, that is, output extremely low speed.
3. Installation form: the installation location is not restricted.
4. High strength and small size: the box body is made of high-strength cast iron. The gears and gear shafts adopt the gas carburizing quenching and fine grinding process, so the load capacity per unit volume is high.
5. Long service life: Under the conditions of correct model selection (including selection of appropriate use coefficient) and normal use and maintenance, the life of the main parts of the reducer (except for wearing parts) is generally not less than 20,000 hours. The wearing parts include lubricating oil, oil seals and bearings.
6. Low noise: The main parts of the reducer have been precision processed, assembled and tested, so the reducer has low noise.
7. High efficiency: the efficiency of a single model is not less than 95%.
8. It can bear larger radial load.
9. It can bear an axial load not greater than 15% of the radial force.
The extremely small F series helical gear motor is equipped with a parallel shaft for shaft mounting, which is very suitable for use under restricted conditions. There are foot mounting, flange mounting and shaft mounting types.



Mounting Arrangement

F37 F47 F57 Parallel Shaft Reducer Gearbox with AC Electric Motor 0
Technical Parameter
Output Speed (r/min): 0.1-379
Output Torque (N.m): Up to 22264
Motor Power (Kw): 0.12-200


Application
This series of products are widely used in metallurgy, mining, building materials, petroleum, chemical, food, packaging, medicine, electric power, environmental protection, lifting and transportation, shipbuilding, tobacco, rubber and plastics, textiles, printing and dyeing, wind power and other mechanical equipment fields.



FAQ

Q:How to choose a motor gearbox,gear speed reducer and gear motor?

A:You can refer to our catalogue to choose a product specification or we can also recommend the model and specification after you provide the required motor power, output speed and speed ratio, etc.



Q: How can we guarantee product quality?
A:We have a strict production process control procedure and test every part before delivery.

Our gear box reducer will also carry out the corresponding operation test after installation, and provide the test report. Our packing is in wooden cases specially for export to ensure the quality of transportation.


Q: Why do I choose your company?
A: a) We are one of the leading manufacturers of gear transmission equipment.
b) Our company has made gear products for about 20 years more with rich experience

and advanced technology.
c) We can provide the best quality and best service with competitive prices for products.



Q:What's your MOQ and terms of payment?

A:MOQ is one unit.T/T and L/C are accepted,and other terms can also be negotiated.



   Q: Can you supply the relevant documentation for goods?

   A: Yes, we can provide most documentation including operator manual, testing report, quality inspection report,

        shipping insurance, certificate of origin, packing list,commercial invoice, bill of lading and other documents.
