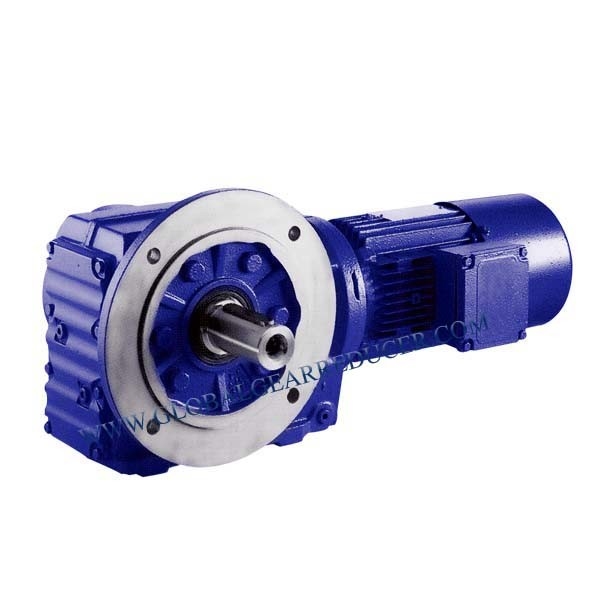

China K167 High Efficiency Gearbox Reducer With High Torque Helical Bevel Gear Motor

China K167 High Efficiency Gearbox Reducer With High Torque Helical Bevel Gear Motor

  • Output Speed
    0.1-267RPM
  • Input Speed
    750-1500 RPM
  • Gearing Arrangement
    Helical Bevel
  • Output Torque
    Up To 61147 N.m
  • Rated Power
    0.12-200kW
  • Color
    Customizable
  • Ratio
    4.5-17396
  • Warranty
    1 Year
  • Mounting Position
    Foot Mounted. Flange Mounted Shaft Mounted
  • Housing Material
    Cast Iron
  • Gear Material
    Alloy Steel
  • Place of Origin
    Jiangsu,China
  • Certification
    ISO9000
  • Model Number
    K Series
  • Minimum Order Quantity
    1PCS
  • Packaging Details
    Wooden Case
  • Delivery Time
    15 to 25 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 sets per month

China K167 High Efficiency Gearbox Reducer With High Torque Helical Bevel Gear Motor

Product Description

K series reducer is a spiral bevel gear transmission unit. This reducer is a combination of multi-stage helical gears, which has higher efficiency than single-stage turbine reducers. The output shaft is perpendicular to the input shaft and consists of two-stage helical gears and one-stage spiral bevel gears. The hard-tooth surface gear is made of high-quality alloy steel, and the tooth surface is carburized, quenched, and finely ground.



Product Feature

1. Highly modular design: It can be easily equipped with various types of motors or other power inputs. The same model can be equipped with motors of multiple powers. It is easy to realize the combined connection between various models.

2. Transmission ratio: fine division and wide range. Combined models can form a large transmission ratio, that is, output extremely low speed.

3. Installation form: the installation location is not restricted.

4. High strength and small size: the box body is made of high-strength cast iron. The gears and gear shafts adopt the gas carburizing quenching and fine grinding process, so the load capacity per unit volume is high.

5. Long service life: Under the conditions of correct model selection (including the selection of appropriate use coefficient) and normal use and maintenance, the life of the main parts of the reducer (except for wearing parts) is generally not less than 20,000 hours. The wearing parts include lubricating oil, oil seals, and bearings.

6. Low noise: The main parts of the reducer have been precision processed, assembled, and tested, so the reducer has low noise.

7. High efficiency: the efficiency of a single model is not less than 95%.

8. It can bear a larger radial load.

9. Can bear axial load not more than 15% of radial force

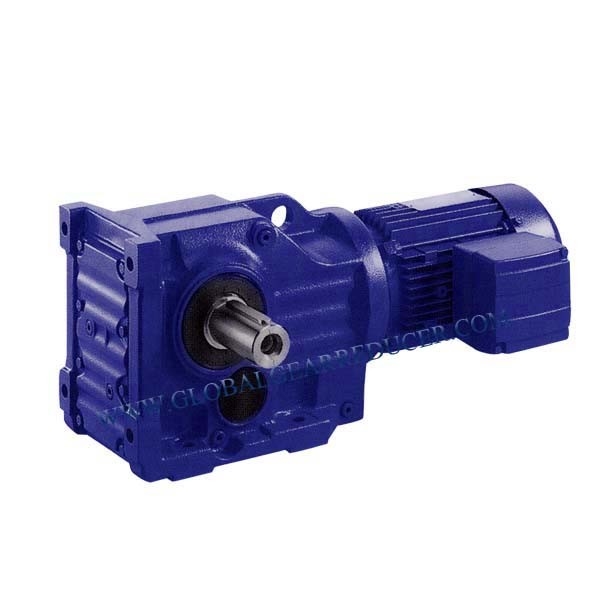

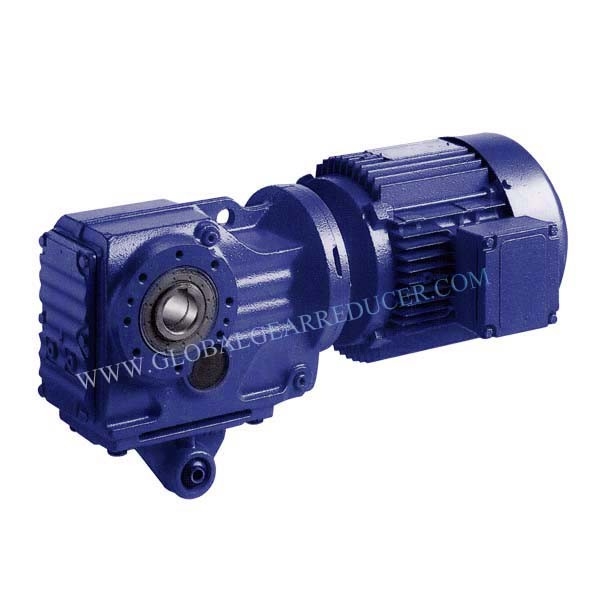

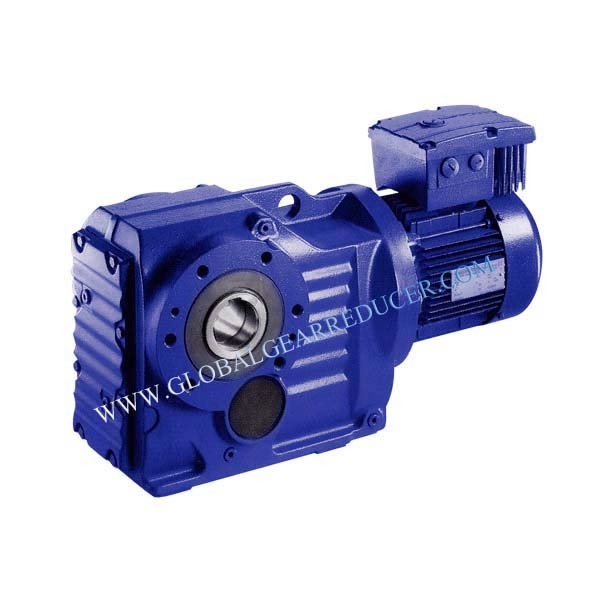

K series three-stage helical bevel gear reducer motors have high-efficiency and long-life gears. There are foot mounting, flange mounting, and shaft mounting types.



Mounting Arrangement

China K167 High Efficiency Gearbox Reducer With High Torque Helical Bevel Gear Motor 0

Technical Parameter

Output Speed (r/min): 0.1-267

Output Torque (N. m): Up to 61147

Motor Power (kW): 0.12-200



Application

This series of products are widely used in rubber machinery, food machinery, mining machinery, packaging machinery, medical machinery, chemical machinery, metallurgical machinery and many other fields.



Core Competencies

1. Our company has a professional managing team.

2. Our company has a professional engineering team.

3. Our company has advanced manufacturing equipment.

4. Our company has precision testing equipment.

5. We can customize the gearbox according to the customer's requirements.

6. Our products have reliable after-sales service.





FAQ

Q:How to choose a motor gearbox,gear speed reducer and gear motor?

A:You can refer to our catalogue to choose a product specification or we can also recommend the model and specification after you provide the required motor power, output speed and speed ratio, etc.



Q: How can we guarantee product quality?
A:We have a strict production process control procedure and test every part before delivery.

Our gear box reducer will also carry out the corresponding operation test after installation, and provide the test report. Our packing is in wooden cases specially for export to ensure the quality of transportation.


Q: Why do I choose your company?
A: a) We are one of the leading manufacturers of gear transmission equipment.
b) Our company has made gear products for about 20 years more with rich experience

and advanced technology.
c) We can provide the best quality and best service with competitive prices for products.



Q:What's your MOQ and terms of payment?

A:MOQ is one unit.T/T and L/C are accepted,and other terms can also be negotiated.



   Q: Can you supply the relevant documentation for goods?

   A: Yes, we can provide most documentation including operator manual, testing report, quality inspection report,

        shipping insurance, certificate of origin, packing list,commercial invoice, bill of lading and other documents.
